Electric APU

Ethium APU batteries are engineered specifically for Class 8 truck electric APUs. When compared with conventional AGM31 lead acid batteries, Ethium delivers unmatched capabilities.


  • 2x Available Capacity
  • 4x Longer Life
  • 2x Faster Charge
  • 2x Lighter
  • Extremely Safe and Compatible

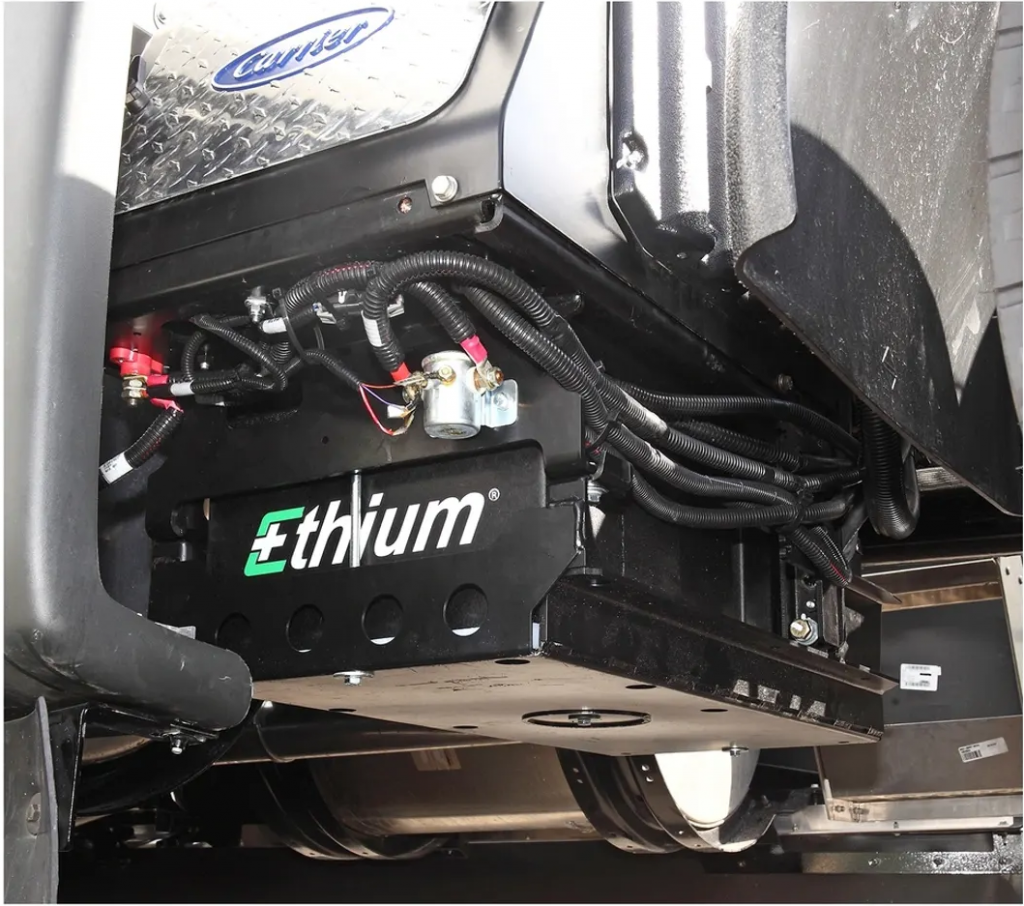

Benefits

Significantly improved performance and driver comfort with a quick return on investment:


Extended Capacity

The ultra energy dense XL12A-3500 is capable of 275 Ah (550 Ah per application) for twice the actual available capacity when compared to leading AGM31 solutions.


Extended Life

Designed to last 3,000 deep discharge cycles maintaining close to nominal capacity with a 5 year / 1,000 cycle warranty backed by EControls.


Quick Recharge

Charges twice as fast as AGM31 with Active Voltage Control (AVC).


Lightweight

Less than half the weight of lead acid batteries: 550 Ah is only 153 lbs.


Drop-in Replacement

Fits in your existing APU battery compartment and meets your battery weight requirements.


Maintenance Free

Easy to install with no need for maintenance or replacement.

Products

XL12A-3500

XL12A-3500

XL12A-3500


Compatible with:     2x AGM31

Nominal Voltage:    12.8 V

Nominal Capacity:  275 Ah

Dimensions:            27 x 7 x 9 in (686 x 178 x 229 mm)

Weight:                    76.5 lbs (34.7 kg)

Data sheet

XL12A-2500

XL12A-3500

XL12A-3500


Compatible with:     2x AGM31

Nominal Voltage:    12.8 V

Nominal Capacity:  200 Ah

Dimensions:            27 x 7 x 9 in (686 x 178 x 229 mm)

Weight:                    60.8 lbs (27.6 kg)

Data sheet

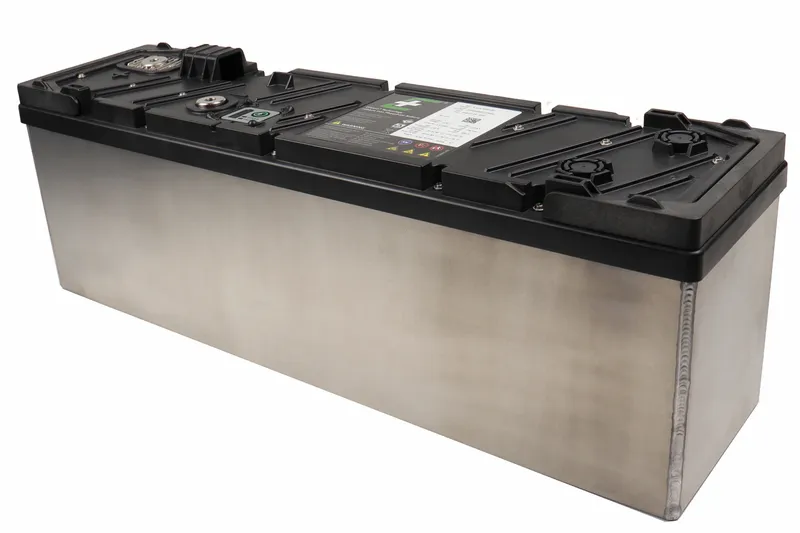

Features

BMS and AVC Technology

Patented Active Voltage Control (AVC) technology to manage voltage from the alternator and maximize the speed of charge. Advanced Battery Management System (BMS) to manage cell health, charge balance, and maximize life and safety.


On/Off Switch with LED Indicator

Each battery can be switched on/off using a fully sealed push button. The state of charge and fault/status mode are also displayed on the user-friendly LED indicator.


Communication

Active CAN communication protocol via Deutsch connector for battery configuration and to download maintenance and warranty data.


Cylindrical LiFePO4 Cells

UL rated lithium iron phosphate cells for high energy density, durability, safety and compatibility with lead acid.


Temperature Rating

Designed to perform at temperatures as low as -40°C and up to 60°C (-40°F to 140°F).


Internal Construction

Highly energy dense, vibration proof, and virtually wire free heavy duty design. Embedded electronics and honeycomb structure with enhanced thermal conductivity for improved cell thermal control.


Terminals and Enclosure

Corrosion resistant nickel plated terminals. Durable glass filled plastic cover and corrosion resistant aluminum enclosure. IP67 water and dust proof rating.


Product Specifications

Publications

Product Brochure

Product Brochure

Product Brochure

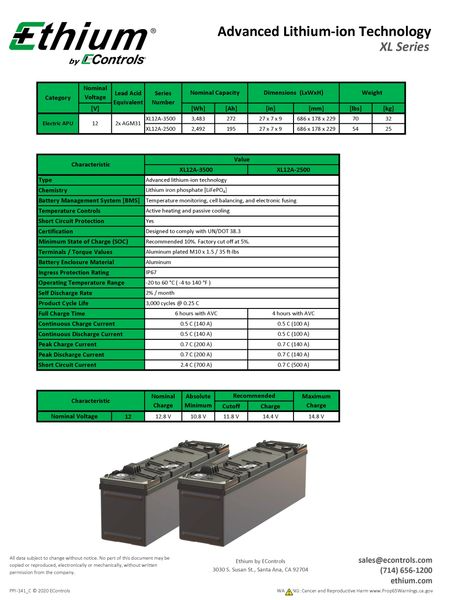

Data Sheet

Product Brochure

Product Brochure
